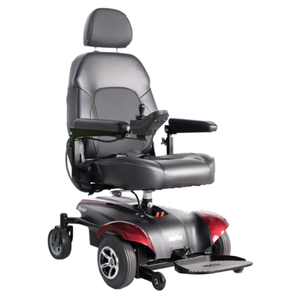

Merits Vision CF Power Wheelchair P322
- Weight capacity 300 lbs
- Detachable, height and width adjustable armrests
- 18" seat width, ergonomic seating design
- Semi-reclining back rest 90° - 135°
- Compact, lightweight design
- Easy access to components
- 9" Drive wheels, 6" casters
- Excellent maneuverability
- Flip up footplate
- Options: Height adjustable arms, swingaway joystick
DIMENSIONS
| Seat Width | 18" |
| Seat Depth | 18" |
| Seat Height | 20"- 22" |
| Backrest Height | 20" |
| Min. Footrest Extension | 16.5" |
| Max. Footrest Extension | 18.5" |
| Overall Length | 33" |
| Overall Height | 42" |
| Overall Width | 24" |
| Total Weight | 154lbs |
| Capacity | 300lbs |
TECHNICAL SPECS
| Max Speed | 4mph |
| Range | 18 miles |
| Turning Radius | 21" |
| Ground Clearance | 2.4" |
| Motor | DC 24V, 130W |
| Controller | Dynamic LiNX |
| Battery |
12/ U1(34AH) x 2pcs |
| Charger |
4A off-board |
| Gradient |
6° |
| Casters |
6" foam filled tires |
| Drive Wheels | 9" foam filled tires |
| Brakes |
intelligent, regenerative, electromagnetic brakes |
