Technical Specs

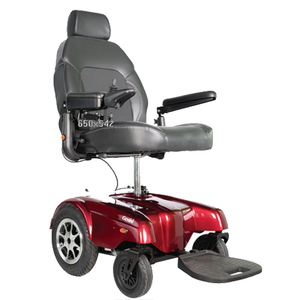

Merits Gemini Power Wheelchair with Lift P301
- Weight capacity: 450lbs
- Unique suspension system and high-density foam seat provide a smooth and comfortable ride
- The sophisticated controller coupled with 14" aluminum cast drive wheels offer excellent maneuverability
- Comfortable 22" (20" with seat elevator) wide captain seat has swivel and folding capabilities with adjustable head and backrest
- Aluminum footplate with flip-up height and angle adjustability provides various comfort positions
- Programmable controller with a wide range of selections to suit the needs and demands of different users
- Non-programmable controller also available
- Colors available: Red, Blue
- Options: swing-away joystick, elevating legrests, oxygen tank holder, power seat lift, cane & crutch holder, rear foldable basket, walker holder, canopy
Dimensions
Gemini with Seat Lift |
Gemini | |
Seat Width | 20" | 22" |
Seat Depth | 20" | 22" |
Seat Height | 24"-29" | 22"-24" |
Backrest Height | 20" | 22" |
Overall Length | 41" | 41" |
Overall Height | 45" | 45" |
Overall Width | 24" | 24" |
Total Weight | 350 lbs | 242 lbs |
Capacity | 350 lbs | 450 lbs |
Technical Specs
Max Speed |
5mph |
Range |
up to 20 miles |
Turning Radius |
21" |
Ground Clearance |
4" |
Motor |
DC 24V, 240W |
Controller |
Dynamic Shark 60A/PG VR2 60A |
Battery |
12V/22NF(50AH) x 2pcs |
Charger |
5A off-board |
Gradient |
10° |
Casters |
9" foam filled tires |
Drive Wheels | 14" foam filled tires |
Brakes |
intelligent, regenerative, electromagnetic |
