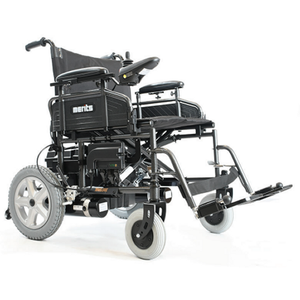

Merits Folding Power Wheelchair P171 / P101W
- Weight capacity: 300lbs
- Folding battery tray allows improved portability
- Programmable controller with a wide range of selections to suit the needs and demands of different users
- Non-programmable controller also available
- Adjustable height flip-up armrests and swingaway footrests
- Limited lifetime warranty on frame
- Colors Available: Silvertone
- Options: Elevating Legrests, Oxygen Tank Holder, Gel Cushion and Back Cushion, Auxiliary brakes offer extra safety
DIMENSIONS
| Seat Width | 20 |
| Seat Depth | 18 |
| Seat Height | 20 |
| Armrest Height | 12 |
| Backrest Height | 15 |
| Min. Footrest Extension | 16 |
| Max. Footrest Extension | 21 |
| Overall Length | 45 |
| Overall Height | 36 |
| Overall Width | 26 |
| Folded Width | 14 |
| Total Weight | 145 |
| Capacity | 300 |
TECHNICAL SPECS
| Max Speed |
4mph |
| Range |
up to 18 miles |
| Turning Radius |
24" |
| Ground Clearance |
4.8" |
| Motor |
DC 24V, 180W |
| Controller | PG VSI 50 |
| Battery |
12V/U1(34AH) x 2pcs |
| Charger |
5A off-board |
| Gradient |
10° |
| Casters |
8" foam filled tires |
| Drive Wheels |
12.5" foam filled tires |
| Brakes |
intelligent, regenerative, electromagnetic |
