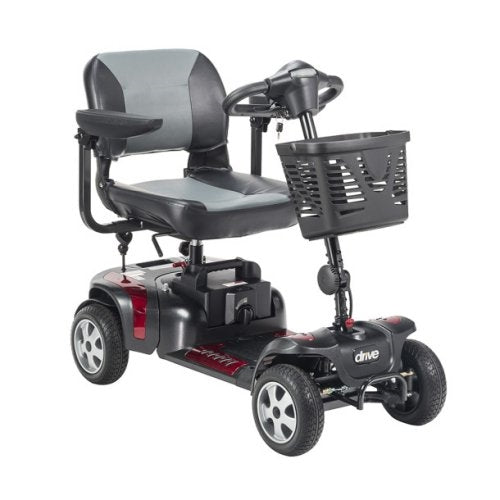

Drive Medical Phoenix 4 Wheel Heavy Duty Scooter
The Phoenix 4 Wheel Heavy Duty Scooter by Drive Medical provides users with indoor and outdoor independent mobility. This Scooter's convenient and compact design has the ability to assemble and disassemble into 4 easy to store and transport pieces, and comes with interchangeable color panels in red and blue. The standard features of a height adjustable seat, width adjustable arms, headlight and "Finger Pull" throttle provides added comfort and safety on every ride. This compact scooter comes with an easy to remove battery that can be charged separately from the unit. The Phoenix 4 Wheel Heavy Duty Scooter's design provides enhanced stability on rough outdoor terrain, allowing you to cruise around town with ease.
Features
- Quick and easy disassembly
- Includes interchangeable color panels in Red and Blue (Figure A)
- Armrests are padded and adjustable
- Quick connect batteries
- Egonomic throttle control
- Height-adjustable swivel seat with two-tone upholstery
- Flat-free, non-marking tires
- Large, plastic carry basket
- Easy-to-adjust tiller
- Anti-tip wheels
- Headlight

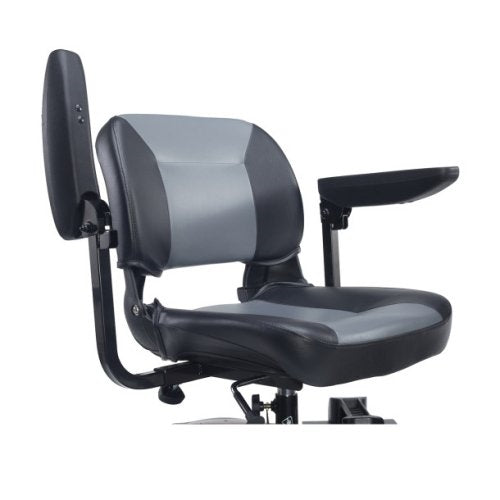

- Swivel seat with fold-down backrest
- Easy free wheel operation
Specifications
Base Weight | 77 lbs. |
Batteries (pair) | 12V x 20AH |
Battery Weight (pair) | 31 lbs. |
Brakes | Electromagnetic |
Charger | 1.5A Offboard |
Climbing Angle | 6 degrees |
Dimensions | 41.5 inches (L) x 22.5 inches (W) |
Floor to Seat Height | 20 inches - 22 inches |
Front Wheels | 9 inches x 3 inches Flat-free |
Ground Clearance | 3.75 inches |
HCPCS | K0801 |
Heaviest Piece | 46 lbs. (Front Section) |
Maximum Range | 15 miles |
Motor | 24V x 350W x 3600 rpm |

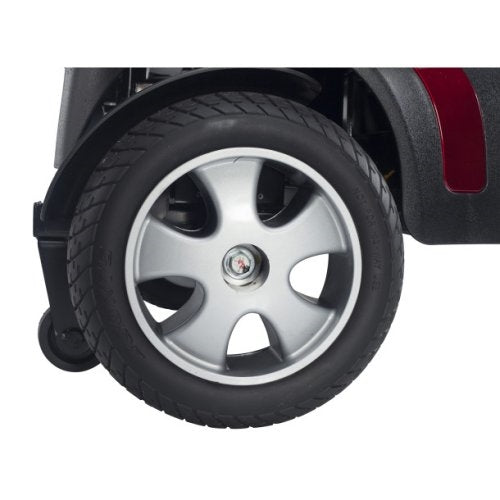

Rear Wheels | 9 inches x 3 inches Flat-free |
Seat Dimensions | 17.5 inches (W) x 17 inches (D) |
Seat Type | Folding |
Seat Weight | 21 lbs. |
Top Speed | 4 mph |
Total Weight (excl. hand control) | 129 lbs. |
Turning Radius | 54 inches |
Warranty on Batteries | 12 Months |
Warranty on Drive Train Components |
24 Months |
Warranty on Electronic Controller | 24 Months |
Warranty on Frame | Lifetime |
Weight Capacity | 350 lbs |
Weight Capacity (13046 | 13046-HD) | 350 lbs. |
Wheel Base Dimensions (L x W) | 30.7 inches x 19.1 inches 30.7 inches x 19.1 inches |
